Operating Supply Current ::	9 uA	Ib - Input Bias Current ::	50 nA
Mounting Style ::	SMD/SMT	Minimum Operating Temperature ::	- 40 C
SR - Slew Rate ::	0.1 V/us	Supply Voltage - Max ::	5 V
Package / Case ::	SC-70-5	Maximum Operating Temperature ::	+ 85 C
Supply Voltage - Min ::	2.7 V	Packaging ::	Reel
Output Current per Channel ::	2 mA	Product Category ::	Operational Amplifiers - Op Amps
Series ::	LPV321-N	GBP - Gain Bandwidth Product ::	152 kHz
Number of Channels ::	1 Channel	Vos - Input Offset Voltage ::	7 mV
Manufacturer ::	Texas instruments	Shutdown ::	No Shutdown
CMRR - Common Mode Rejection Ratio ::	50 dB to 71 dB

Operating Supply Current ::	9 uA
Ib - Input Bias Current ::	50 nA
Mounting Style ::	SMD/SMT
Minimum Operating Temperature ::	- 40 C
SR - Slew Rate ::	0.1 V/us
Supply Voltage - Max ::	5 V
Package / Case ::	SC-70-5
Maximum Operating Temperature ::	+ 85 C
Supply Voltage - Min ::	2.7 V
Packaging ::	Reel
Output Current per Channel ::	2 mA
Product Category ::	Operational Amplifiers - Op Amps
Series ::	LPV321-N
GBP - Gain Bandwidth Product ::	152 kHz
Number of Channels ::	1 Channel
Vos - Input Offset Voltage ::	7 mV
Manufacturer ::	Texas instruments
Shutdown ::	No Shutdown
CMRR - Common Mode Rejection Ratio ::	50 dB to 71 dB

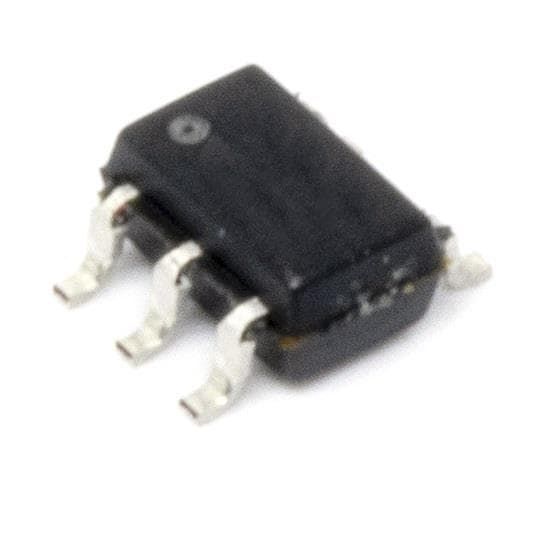

LPV321M7/NOPB

L'LPV321M7/NOPB,di strumenti del Texas,è un amplificatore operativo - Op Amps. quello che offriamo ha un prezzo competitivo nel mercato globale,che sono in parti originali e nuove.Se desiderate saperne di più sui prodotti o richiedere un prezzo inferiore, contattateci tramite la chat online o inviateci un preventivo!
